Product Introduction

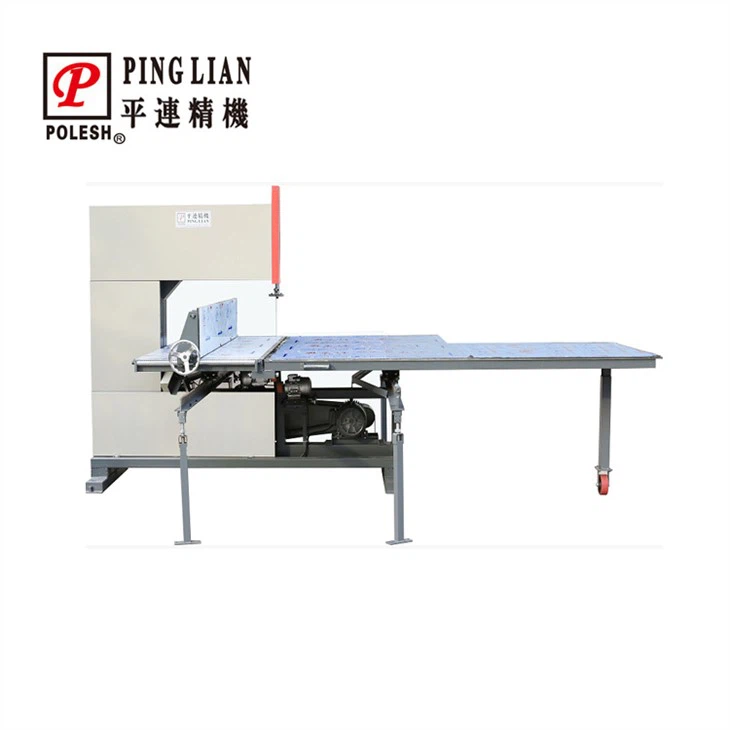

The slicer cutting machine is composed of main machine, motor, platen, track and knife belt. It is mainly used to cut large materials into small pieces, which is convenient for subsequent process operation, such as EVA large foam, PU foam, memory cotton, Hi-poly, Ortholite, EPE foam and other materials
This machine can cut all kinds of soft polyester foam, used as cutting or cutting angles for block shaped foam plastics, the maximum cutting size :L:2M, W:2M , H:1.2M.
Product Parameters
Model | PL-2001 EVA splitting machine | PL-2003 slicer cutting machine |
Voltage | 380V | 380V |
Power | 3KW | 3KW |
Machine dimension L*W*H | 2100*900*1200mm | 2400*2000*1800mm |
Packing dimension L*W*H | 2200*1000*1300mm | 2500*2100*1900mm |
Weight ( KG ) | N:1200 / G:1300 | N:1000 / G:1100 |
Features:
The cutting motion is carried out by the cutter belt, the worktable is provided and the longitudinal baffle mechanism is formed.
The cutter belt cuts movement: the four belt pulley forms the knife belt system, One is driven by the motor directly, the other is driven by the adjusting wheel. The tightening of the knife belt is regulated by the screw mechanism. The high-speed vertical moving knife belt cuts the foam plastic vertically in the seam of the worktable.
Table feed and longitudinal baffle mechanism: the workbench moves forward and backward on the guide rail, and the handwheel is moved laterally through the rack and pinion mechanism.
This EVA insole machine passed the CE certificate.
