Product Introduction

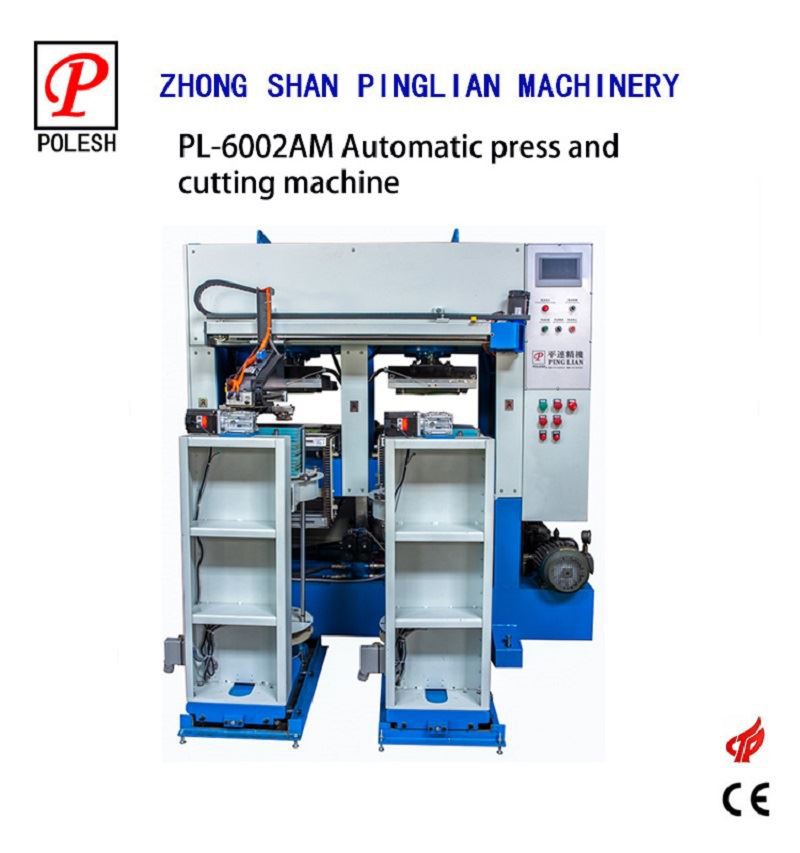

This automatic hot press and cutting machine is designed and manufactured by Zhongshan Ping Lian machinery Co., LTD., which is used for hot pressing and embossing of sheet materials. It has the characteristics of stable performance, simple operation, easy maintenance and durability.
The machine is designed for hot-pressing and cutting all-in-one machine, feeding with chain and manipulator is adopted to realize the operation mode of molding all-in-one machine. The manipulator automatically grabs the sheet material and feeds it into the mold for hot-pressing . After hot-pressing, the machine automatically feeds the material for cutting. The size of the product produced by this machine is relatively stable, also save manpower and it real automatically to reduce the moving time in manufacture , save the time of each working procedure of mobile and artificial cost, effectively reduce the cost for the customers , productivity improvement, the machine can work 24 hours continuously, suitable for mass production.
Product Parameters
|
Model |
PL-6002AM |
PL-6002S |
|
Mold plate size |
300*400mm |
300*400mm |
|
Mold seat Qty |
2 |
2 |
|
Power |
7.5HP |
7.5HP |
|
Oil Pressure |
10T*2 Can be customize |
10T*2 Can be customize |
|
Voltage |
9KW |
9KW |
|
Machine dimension L*W*H |
1850*1900*2000mm |
1600*2960*1800mm |
|
Packing dimension L*W*H |
1950*2000*2100mm |
1700*3060*1900mm |
|
Weight ( KG ) |
N:2000 / G:2100 |
N:1300 / G:1400 |
Features:
The rise and fall of the machine can transform the automatic and manual mode of work, also it can follow different product to set up the pressing time and holding time.
This automatic insole hot press and cutting machine is applied to the products molded by PU foam, memory foam, Hi poly and ortholite materials… … etc.
Servo pump system of our automatic press cutting machine, energy-saving,Highly active,low heating,lower noise,precision. adopts the world famous brand PLC and micro computer to control the system
All our insole press machine are passed the CE certificate.
Electrical control box of all our insole press machine a reasonable distribution of electrical components, mark each line are doing a diagnostic repair quick and easy to understanding if got any problem during the process and very easy to check the problems .
